The highlights of the above said order are:

• Application: - Blooming mill
• Replacement to: - ASEA Make
• Rating: - 1550kW, 600V, 200/400RPM
• Frame size:- KLDCS-3157
• Specialties:-

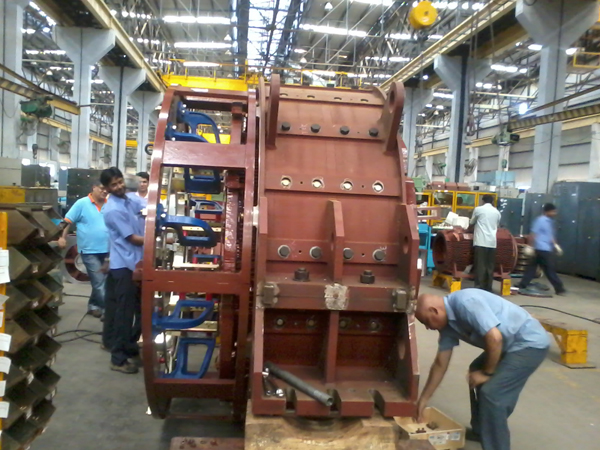

  • Split Stator diameter 2215mm with Belly down construction. Duct Ventilated.
  • Shunt Compensated Machine.

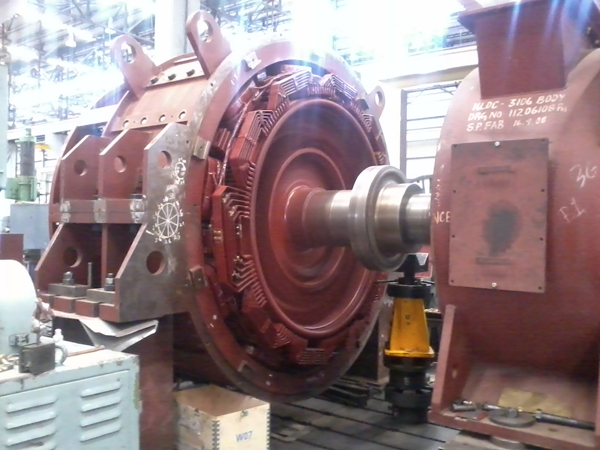

  • Segmental Rotor construction with Armature diameter 1500mm.
  • Single shaft extension with one side Antifriction grease lubricated Bearing
• Motor is sent in knock down condition which has to be assembled at site.
